MV Variable frequency drives
MV Variable frequency drives
The SINAMICS drive family offers innovative solutions for various industrial applications, including pumps, fans, compressors, mills, crushers, conveyor systems, and mine hoists. The PERFECT HARMONY GH180 stands out with its integrated drive-transformer design, motor-friendly sinusoidal output voltage, and advanced cell bypass for high reliability. The SM150 excels in single- and multi-motor systems with 4-quadrant operation, regenerative capability, and a compact, rugged design. Meanwhile, the GH150 combines transformer flexibility, advanced cooling options, and motor compatibility up to 13.8 kV, ensuring maximum process availability and efficiency across diverse installations.

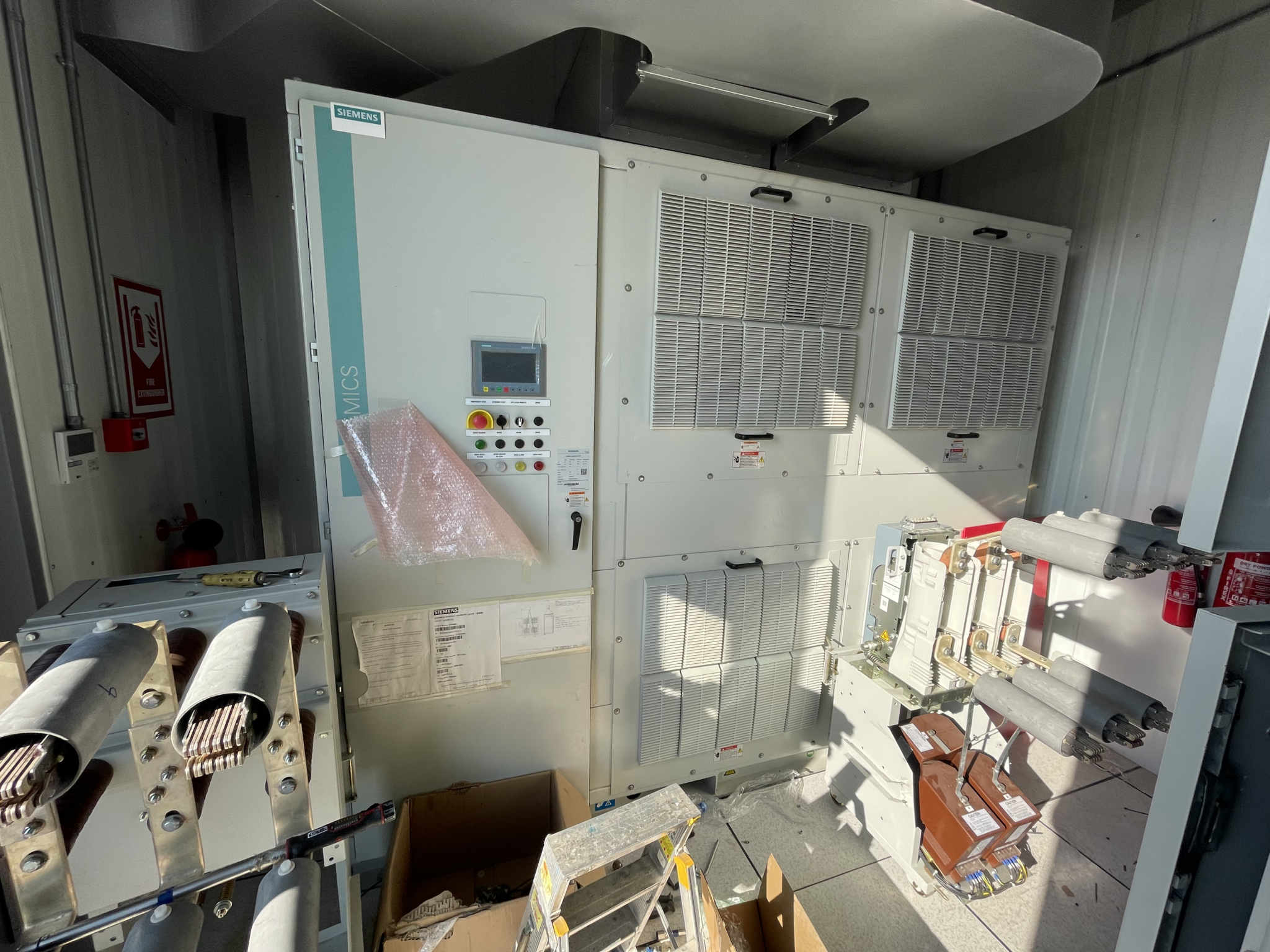

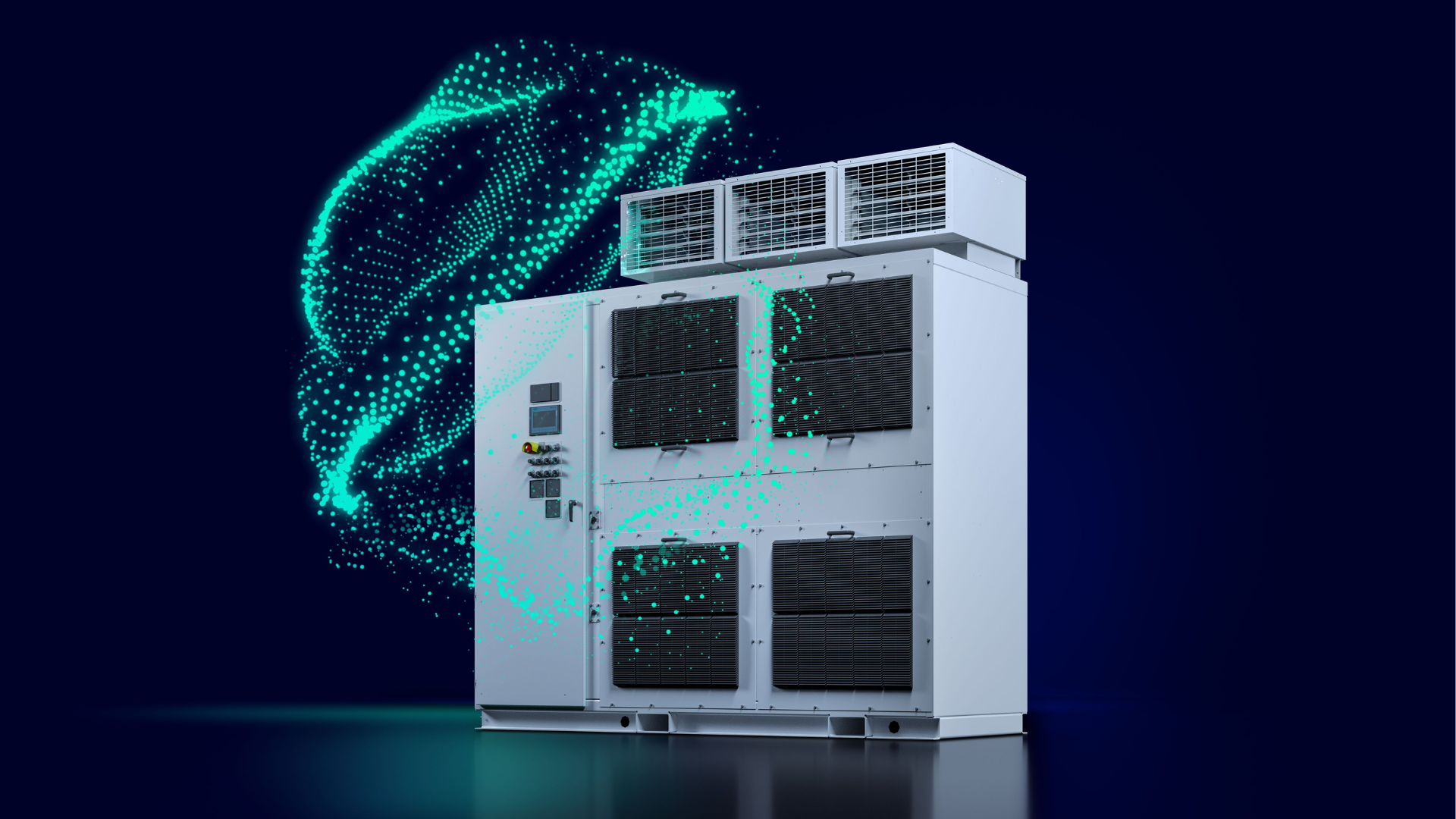

SINAMICS PERFECT HARMONY GH180
Core Applications
Single-motor and sync-transfer motor applications such as pumps, fans, compressors, mills, crushers, conveyor systems, retrofit projects, etc.
Product Highlights
Integrated and optimized drive and transformer design – Minimized plant footprint, combined cooling system and plug-and-play drive system setup.
Over 15,000 drives sold worldwide – The most trusted and proven drive on the market today with installations in every major process industry.
Extremely motor-friendly – Capable of being configured with virtually any motor thanks to an almost sinusoidal output voltage.
Cell bypass and cell redundancy – Maximize process availability thanks to its Advanced Cell Bypass feature for maintaining a balanced output voltage without torque or speed reductions.
SINAMICS SM150
Core Applications
Single- and multi-motor applications such as mills, crushers, conveyor belts, test stands, rolling mills and mine hoists.
Product Highlights
4-quadrant operation – Regenerative capability for energy-saving drive system solutions.
Single and Multi-motor capability – Utilizing a common DC link.
Optimized footprint and design – Compact, rugged; saves costs and space.
High dynamic performance
SINAMICS PERFECT HARMONY GH150
Core Applications
Single motor applications include pumps, fans, compressors, conveyor systems (uphill), and retrofit projects.
Product Highlights
Transformer flexibility – Able to utilize separate dry type or oil-filled standard converter transformers or high primary voltages or a number of pulses.
Flexible cooling arrangement perfect for any installation requirements – Water or air-cooled design, duct air outside, use an integral or separate air-to-air or integral air-to-water heat exchanger, stand-alone control cabinet.
Extremely motor-friendly – Capable of being configured with virtually any motor thanks to an almost sinusoidal output voltage of up to 13.8 kV.
Cell bypass and cell redundancy – Maximize process availability thanks to a high-speed cell bypass feature for maintaining a balanced output voltage without torque or speed reduction.

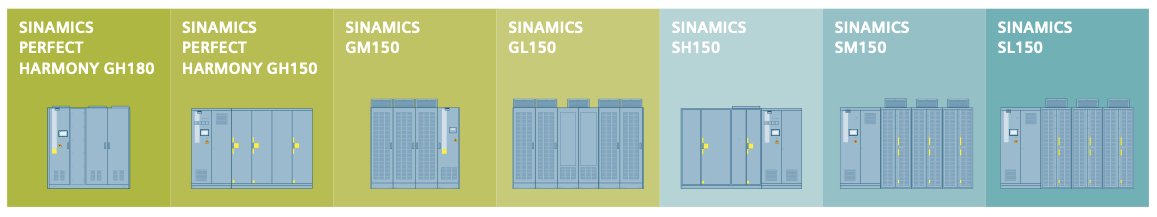

SINAMICS Medium Voltage Drives
